    As a leading China paper box supplier and packaging solution provider, Shanghai DE Printed Box provides the free paper box dieline templates for your custom paper boxes. We supply the free dieline templates for the custom paper printed boxes, custom corrugated printed boxes and custom rigid paper boxes.

    Feel free to send an email to the address below to get a free templates for your custom paper box.

    • janewu@deprintedbox.com
    • kris@deprintedbox.com

    We aim to provide the dieline template within 24 hours during our workdays. Our mechanical drawing enables your designer to seamlessly incorporate the artwork design onto the template, thereby saving you valuable time, money, and potential complications in the future.

    Paper Box Styles

    We provide free templates for the most commonly used paper box styles, which cater to a wide range of packaging needs. In the event that you require a custom box style that is not listed below, we would be pleased to offer a template for a nominal fee, based on the complexity of the box. Please do not hesitate to contact us via email. The following are the paper box styles for which we offer free templates:

    free RSC carton box template

    RSC Carton Box Template

    free tuck top snap lock bottom box template

    Tuck Top Snap Bottom Box Template

    free tuck top auto lock bottom box template

    Tuck Top Auto Bottom Box Template

    free corrugated mailer box template

    Roll End Tuck Front Mailer Template

    free reverse tuck end paper box template

    Reverse Tuck End Paper Box Template

    free straight tuck end paper box with tab template

    STE Paper Box With Tab Template

    free STE paper box template

    STE Paper Box Template

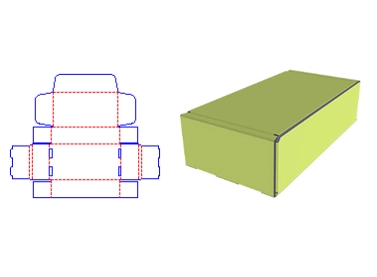

    free roll end tuck top mailer box template

    Roll End Tuck Top Mailer Template

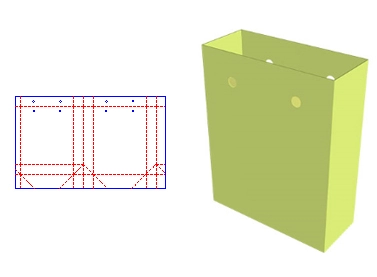

    free paper bag template

    Custom Paper Bag Template

    Information Necessary for Dieline Template Creating

    Both box size and paperboard thickness are crucial factors when creating a paper box template. Accurate measurements of the dieline are essential to ensure that your product fits perfectly within the box once packaging is complete. To help facilitate this process, we have provided a checklist below to guide you when sending us an email requesting a free paper box template.

    Custom Paper Box Structure

    It would be very helpful if you could send us one or two pictures of a similar printed paper box that you want.

    Paperboard Thickness

    Thin printed paper box

    If it is a regular paper printed box made of the SBS paperboard, we usually assume that paper board thickness is 0.5mm.

    Corrugated printed box

    If it is the corrugated board used to make a corrugated printed box, we need know the flute types, E flute, or BC flute, or F flute.

    Custom rigid paper box

    For a rigid paper box, we need know the paperboard thickness you need, is it 1mm, 1.5mm, 2mm, 2.5mm or 3mm?

    Printed Paper Box Dimensions

    Could you kindly specify whether the size mentioned refers to the inner or outer dimensions of the box? We would greatly appreciate both specifications. If this information is not available, we kindly request that you provide us with the dimensions of your product.

    It is of utmost importance for us to discern the difference between the inner and outer dimensions, which is determined by the thickness of the paperboard. This information is particularly critical for corrugated and rigid paper boxes, as it may impact pricing and give rise to future complications such as the box being unfit for your products or the products shifting inside the box. In case of uncertainty regarding the box size, we would be grateful if you could send us a sample of your product, enabling our designer to determine the appropriate size.

    Specify the Length, Width, Height in the Correct Order

    In the paper printed packaging field, standard paper box is measured as length x width x height(depth), where the height is the vertical dimension of the box when the opening is facing upwards.

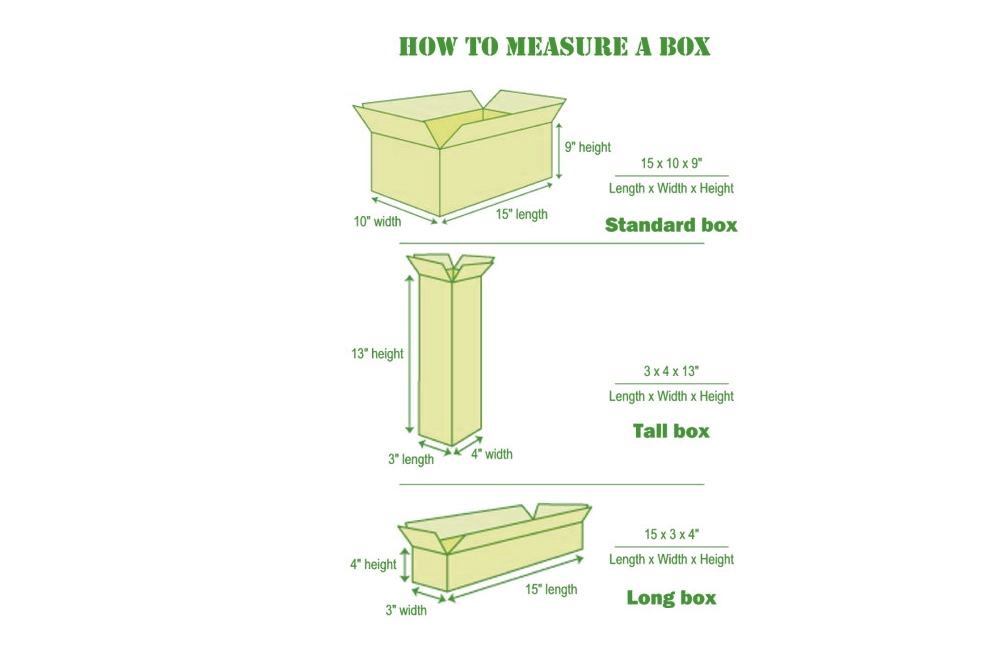

    how to measure the length, width, height of a paper box
    How to Measure a Paper Box

    What is Dieline Template?

    A dieline template is a 2D design that provides instructions for cutting, creasing, and perforating paper boxes for packaging. It includes solid lines to represent cut lines and dotted lines in a different color to indicate fold lines. It also designates areas for tape or glue.

    Digital Design Sample

    "In the meantime, we are pleased to offer you digital design samples prior to providing hard samples, saving you both time and cost. The digital design sample is a 3D mockup that closely resembles the real paper box, providing a clearer visualization of the product you desire.

    A 3D mockup is a virtual representation of a product, created using computer-aided design (CAD) software. It is a three-dimensional model that simulates the look, feel, and functionality of a product. In the case of a paper box, a 3D mockup can show the design, color, texture, and shape of the box, providing a realistic preview of the final product. 3D mockups are used in product development, marketing, and advertising, allowing designers and clients to visualize the product before it is physically produced, and to make changes as needed.

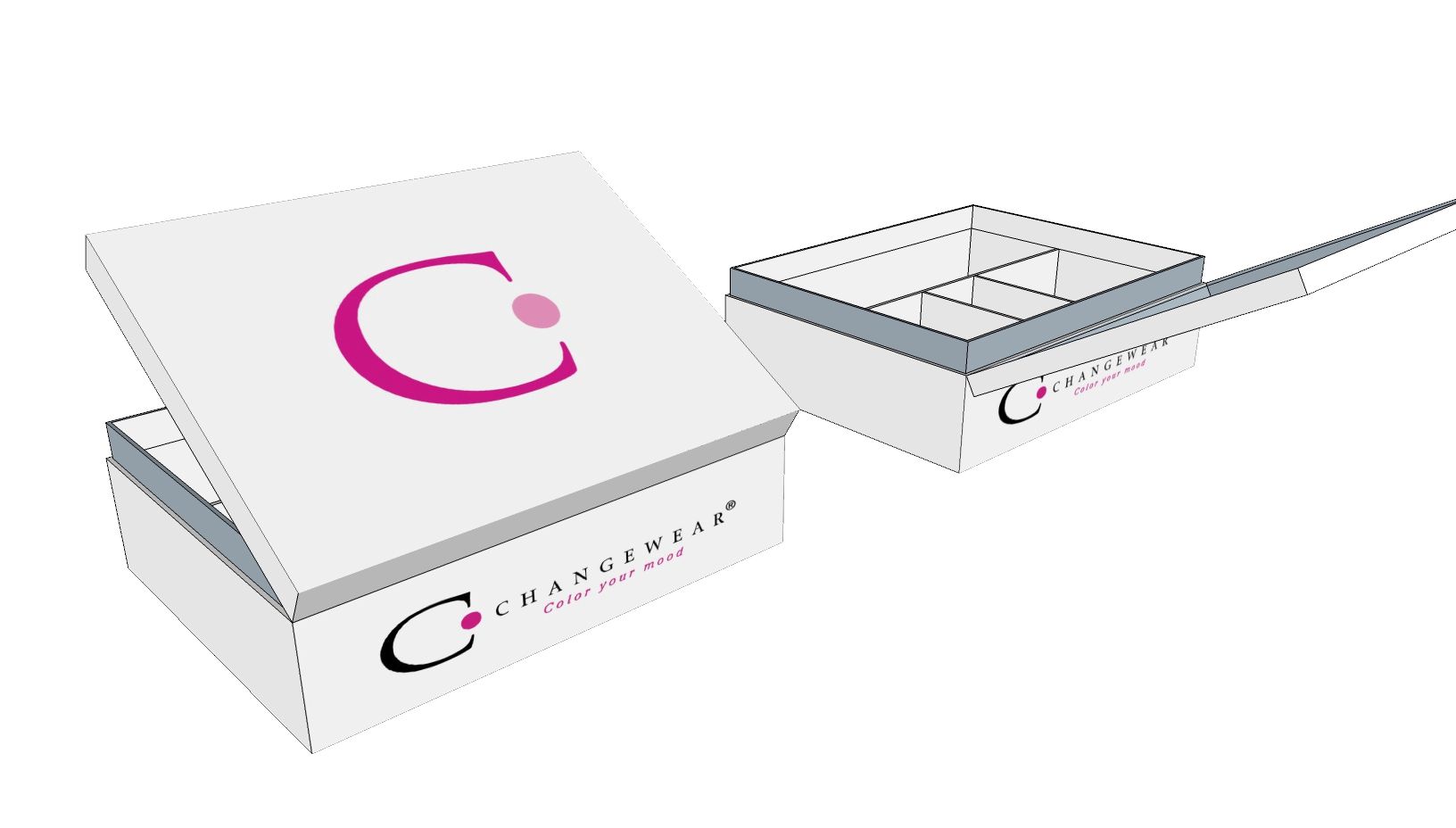

    3D mockup for the rigid paper box
    3D Mockup for Rigid Paper Box

    This is a rigid shoulder box with the hinged lid. The custom paper box has the partitions inside made of the folding cardboard paper without gluing.
